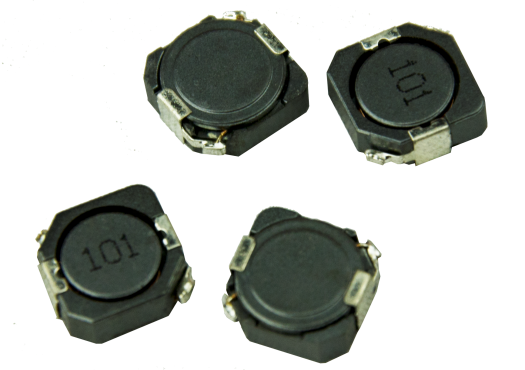

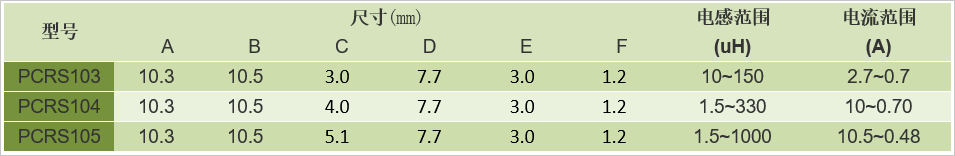

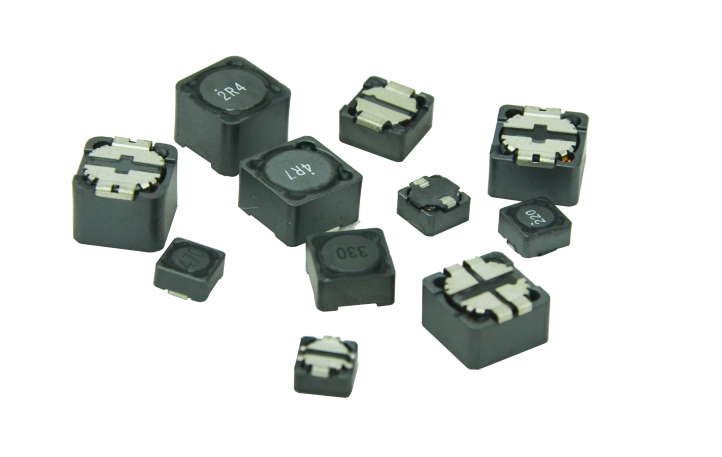

SMD POWER CHOCK INDUCTORS

Android Industrial Handheld Tablet

Product ID：1060991967
Shooting Angle: 130 degrees
Video pixel：1920*1080
Shelf time：2013-12-20 13:09:30
Product description: Android Industrial Handheld Tablet
INQUIRY

LMPH951-4G Android Mobile Computer
LMPH951-4G erial products extend Handheld-Wireless product serials into Android OS 5.1.1with 4G high speed network communication. Inside the compact handheld device, sealing level of IP65 water/dust proof, 1.5m/4.5ft drop survival, ergonomic design, over-molding structure, quick- charging technology,and 5.0 inch tough Gorilla Glass 3 screen are all equipped to ensure performance. Latest 1.5GHz quad-core processor 2GB RAM,16GB ROM and up to 32GB expansion are all designed to boost up experience level.

FEATURES
Extremely Stable Performance
Android 5.1.1 OS/4.4.2 OS with memory of 2GB RAM,16GB ROM can provide the highly standard experience
High Speed Data Communication
Double insurance of 4G high Speed network and dual-frequency WIFI network can ensure the
real-time data communication in different using environment
Rugged Ergonomic and Over-molding Design
Over-molding and ergonomic hardware design can satisfy most of the tough environment from
different fields;
Extremely Stable Hardware Display
5.0 inch Gorilla Glass 3 9H screen can ensure the performance under different tough environment;
Highly Customized Structure
'All-in-One’ hardware design conception can expand the hardware modules integration based on different project requirements, especially like UHF+HF, UHF+LF; HF+LF;
Highly Integrated and Preinstalled Application
The highly integrated and preinstalled ScanServer can satisfy most of the solutions obtained from Google Play by the working principle of ‘Plug and Play’
Quick-Charging
Quick-charging technology can provide the most efficient experience;
Perfect Service
Professional and skillful service involving the whole life cycle can guarantee the stability.
Physical Characteristics:

Item	Android 5.1.1
Dimension	170mm(H)x85mm(W)x23mm(D)±2 mm
Net Weight	370g (including battery&wrist strap)
Display	Gorilla Glass3 9H 5.0 in. TFT-LCD(720x1280) touch screen with backlight
Backlight	LED backlight
Keypads	3 TP keys, 6 function keys, 4 side buttons
Expansions	2 PSAM, 1 SIM, 1 TF
Battery	Rechargeable li-ion polymer, 3.7V, 4500mAh

Performance:

CPU	Quad A53 1.3GHz quad-core
Operating System	Android 5.1.1/ Android 4.4.2
Storage	2GB RAM, 16GB ROM, MicroSD(max 32GB expansion)

User Environment:

Operating Temp.	-20°C to 50°C
Storage Temp.	-20°C to 70°C
Humidity	5%RH to 95%RH(non-condensing)
Drop Specifications	5ft./1.5 m drop to concrete across the operating temperature range
Sealing	IP65, IEC compliance
ESD	±15kv air discharge, ±8kv direct discharge, ±8kv indirect discharge

Development Environment:

SDK	Software Development Kit
Language	Java
Environment	Android Studio or Eclipse

Data Communication:

WWAN	TDD-LTE Band 38, 39, 40, FDD-LTE Band 1. 3, 7; WCDMA(850/1900/2100MHz); GSM/GPRS/Edge 850/900/1800/1900MHz;
WLAN	2.4GHz/5GHz Dual Frequency, IEEE 802.11 a/b/g/n/ac
WPAN	Bluetooth Class v2.1+EDR, Bluetooth v3.0+HS, Bluetooth v4.0
GPS	GPS(embedded A-GPS), accuracy of 5 m

Data Capture

1D barcode	1D laser engine Honeywell N431x Symbologies All major 1D barcodes
2D barcode	2D CMOS Imager Honeywell N6603 Symbologies: PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal. etc.

Camera:

Resolution	8.0 megapixel
Lens	Auto-focus with LED flash

RFID READER(OPTIONAL)

RFID LF
Frequency	125KHz/134.2KHz(FDX-B/HDX)
Protocol	ISO 11784&11785
R/W Range	2cm to 10 cm
RFID HF
Frequency	13.56MHz
Protocol	ISO 14443A&15693
R/W Range	2cm to 8cm
RFID UHF
Frequency	865~868MHz or 920~925MHz
Protocol	EPC C1 GEN2/ISO 18000-6C
Antenna Gain	Circular antenna(2dBi)
R/W Range	1 m to 1.5 m(tags and environment dependant)
